Combining NLP Models and Custom Rules in spaCy

Extend spaCy's NLP pipeline with custom rules for named entity expansion. Covers EntityRuler, pattern matching, and combining ML models with rule-based logic.

Aug 30, 2020Updated Jul 12, 202621 min readFollow

Topics You Will Master

spaCy EntityRuler for adding custom named entity patterns
Extending PERSON entities to include titles like Mr, Dr, Prof
Combining pre-trained ML model predictions with deterministic rule layers
Custom pipeline component registration and pipeline ordering

Combining NLP Models and Creation of Custom rules using SpaCy

Objective: In this blog, we will create some custom rules for our needs and add them to our pipeline, like expanding named entities and finding a person's organization name from a given text.

For example, the corpus spaCy's English models were trained on defines a PERSON entity as just the person name, without titles like "Mr" or "Dr". This makes sense, since it is easier to resolve the entity type back to a knowledge base. But what if we need the full names, including the titles?

  • Mr. Laxmi Kant
  • Mr. Roshan Kumar Gupta

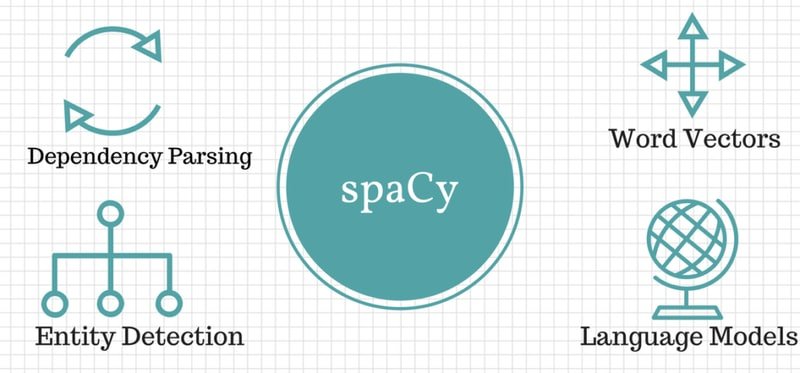

spaCy combining statistical models with rule-based components diagram

SpaCy

If a normal data analysis tool in Python for tabular and structured data has Pandas, then the data analysis tool in Natural Language Processing (NLP) for text and unstructured data has spaCy.

Pandas vs spaCy comparison: structured tabular data vs unstructured text data

When we first start out as data scientists, we usually deal with structured data, which does not really need spaCy to handle complicated text.

In most cases, Pandas will fit our needs, since it can handle most data cleaning and analysis for structured data.

Once we start dealing with unstructured text data (basically NLP stuff) where Pandas can no longer help, spaCy comes in with built-in tools to process, analyze, and understand text through efficient NLP techniques.

SpaCy provides a one-stop-shop for tasks commonly used in any NLP project, including:

  • Tokenisation
  • Lemmatisation
  • Part-of-speech tagging
  • Entity recognition
  • Dependency parsing
  • Sentence recognition
  • Word-to-vector transformations And Many convenience methods for cleaning and normalising text

By the end of this blog, we will have a working understanding of spaCy and how we can apply it in our own domain.

Additional Reading:

Language Processing Pipelines:

spaCy Processing Pipelines Documentation

Natural Language Processing and Computational Linguistics:

Natural Language Processing and Computational Linguistics (Packt)

Watch Full Video Here:

We can mix statistical and rule-based parts in many ways. A rule-based part can boost a statistical model by presetting tags, entities, or sentence breaks for certain tokens. The model usually respects these preset labels, which can improve its other choices too. We can also run a rule-based part after the model to fix common errors. And a rule-based part can read the attributes the model sets, so we can build more advanced logic.

Rule-based and statistical NLP component interaction diagram showing how EntityRuler and ML models combine

Notebook Setup

Installing libraries

PYTHON
# !pip install -U spacy
PYTHON
# !pip install -U spacy-lookups-data
PYTHON
# !python -m spacy download en_core_web_sm

Importing libraries

PYTHON
import spacy
from spacy.matcher import Matcher
from spacy.tokens import Span
from spacy import displacy

One of spaCy's best features is its language models. A language model lets us do NLP tasks such as POS-tagging and NER-tagging.

Here, we are using spacy.load() method to load a model package by and return the NLP object.

PYTHON
#loading english language model

nlp = spacy.load('en_core_web_sm')

Next, we call nlp() on a string and spaCy tokenizes the text and creates a document object.

PYTHON
doc = nlp('Dr. Alex Smith chaired first board meeting at Google')
OUTPUT
doc

Dr. Alex Smith chaired first board meeting at Google
PYTHON
print([(ent.text, ent.label_) for ent in doc.ents])
OUTPUT
[('Alex Smith', 'PERSON'), ('first', 'ORDINAL'), ('Google', 'ORG')]

Use of Name Entity Recognition

Now we are creating our rule to add a title along with entity where entity label is PERSON.

Below are the steps which we are peforming:

  • We create a function that takes the doc as input.
  • We loop over each token. We keep a token if its entity label is PERSON and it does not start at position zero.
  • We check if the token in front is one of ('Dr', 'Dr.', 'Mr', 'Mr.').
  • We then use Span() to build a rule that takes the PERSON label from the start of the title to the end of the name.
  • We assign the value back to the token entity values.
PYTHON
def add_title(doc):
    new_ents = []
    for ent in doc.ents:
        if ent.label_ == 'PERSON' and ent.start!=0:
            prev_token = doc[ent.start-1]
            if prev_token.text in ('Dr', 'Dr.', 'Mr', 'Mr.'):
                new_ent = Span(doc, ent.start-1, ent.end, label=ent.label)
                new_ents.append(new_ent)
            else:
                new_ents.append(ent)
    doc.ents = new_ents
    return doc
PYTHON
#loading english language model

nlp = spacy.load('en_core_web_sm')
nlp.add_pipe(add_title, after='ner')
PYTHON
# call nlp() to tokenize the text and create a Doc object

doc = nlp('Dr. Alex Smith chaired first board meeting at Google')
PYTHON
print([(ent.text, ent.label_) for ent in doc.ents])
OUTPUT
[('Dr. Alex Smith', 'PERSON')]

Use of POS and Dep Parsing

Part-of-speech tagging labels each word with its part of speech. Dependency parsing looks at how the words in a sentence link to each other. Once a sentence is parsed, we learn how its words relate.

PYTHON
#loading english language model

nlp = spacy.load('en_core_web_sm')
PYTHON
# call nlp() to tokenize the text and create a Doc object

doc = nlp('Alex Smith was working at Google')

A parser splits a sentence into a subject and an object, which are a noun phrase and a verb phrase. The dependency parser treats the verb as the head of the sentence, and all links are built around it.

Example: Alex Smith was working at Google

PYTHON
displacy.render(doc, style='dep', options = {'compact':True, 'distance':100})

displaCy compact dependency parse of "Alex Smith was working at Google" showing subject, verb, and object relationships

PYTHON
def get_person_orgs(doc):
    person_entities = [ent for ent in doc.ents if ent.label_=="PERSON"]
    for ent in person_entities:
        head = ent.root.head
        if head.lemma_ == 'work':
            preps = [token for token in head.children if token.dep_ == 'prep']
            for prep in preps:
                orgs = [token for token in prep.children if token.ent_type_ == 'ORG']
                print({'person': ent, 'orgs': orgs, 'past': head.tag_ == "VBD"})
    return doc
PYTHON
from spacy.pipeline import merge_entities
PYTHON
#loading english language model

nlp = spacy.load('en_core_web_sm')
PYTHON
nlp.add_pipe(merge_entities)
PYTHON
nlp.add_pipe(get_person_orgs)
PYTHON
# call nlp() to tokenize the text and create a Doc object

doc = nlp('Alex Smith worked at Google')
OUTPUT
{'person': Alex Smith, 'orgs': [Google], 'past': True}

Modify model

PYTHON
def get_person_orgs(doc):
    person_entities = [ent for ent in doc.ents if ent.label_=="PERSON"]
    for ent in person_entities:
        head = ent.root.head
        if head.lemma_ == 'work':
            preps = [token for token in head.children if token.dep_ == 'prep']
            for prep in preps:
                orgs = [token for token in prep.children if token.ent_type_ == 'ORG']

                aux = [token for token in head.children if token.dep_ == 'aux']
                past_aux = any(t.tag_ == 'VBD' for t in aux)
                past = head.tag_ == 'VBD' or head.tag_ == 'VBG' and past_aux

            print({'person': ent, 'orgs': orgs, 'past': past})
    return doc
PYTHON
from spacy.pipeline import merge_entities
PYTHON
#loading english language model

nlp = spacy.load('en_core_web_sm')
PYTHON
nlp.add_pipe(merge_entities)
PYTHON
nlp.add_pipe(get_person_orgs)
PYTHON
# call nlp() to tokenize the text and create a Doc object

doc = nlp('Alex Smith was working at Google')
OUTPUT
{'person': Alex Smith, 'orgs': [Google], 'past': True}

Conclusion

In this blog, we added two custom rule-based parts to spaCy's NER pipeline. The first is an add_title function that expands PERSON entities to include titles in front, like "Dr." and "Mr.". The second is a get_person_orgs parser that finds the organization an entity worked at. We plug both parts into the pipeline with nlp.add_pipe. This shows how rule logic sits cleanly on top of pretrained models.

Key takeaways:

  • spaCy's pipeline is fully composable: nlp.add_pipe(component, after='ner') inserts a custom function after any existing stage, without rewriting or retraining the base model.
  • The Span API lets you redefine entity boundaries: Span(doc, start-1, end, label=label) extends a PERSON entity one token backward to capture the preceding title.
  • Dependency parsing (head.lemma_ == 'work', token.dep_ == 'prep') gives structured access to grammatical relationships, making it possible to extract "who worked where" from raw text without training a relation extraction model.
  • merge_entities is a built-in pipeline component that collapses multi-token entities into single tokens, which is a prerequisite for clean downstream dependency traversal.

Next steps:

  • Apply EntityRuler patterns for domain-specific entities (product names, internal codes) as shown in Rule-Based Text Extraction and Matching with spaCy.
  • Chain this pipeline with the processing pipeline components from Processing Pipeline in spaCy to handle batches of documents efficiently.
  • Extend the get_person_orgs extractor to output structured JSON for downstream knowledge-graph construction.
