The transformer was built for text. But the Vision Transformer (ViT) showed it works just as well on images. It treats an image as a sequence of patches, just like words in a sentence. In this blog, we fine-tune ViT to classify 20 kinds of Indian food.
The fine-tuning recipe is the same one we have used throughout this series. Only the preprocessing changes, from a tokenizer to an image processor.
Prerequisites: Familiarity with the transformer architecture and a Python environment with transformers, datasets, evaluate, torch, and torchvision. A GPU is recommended.
How the Vision Transformer Works
ViT was introduced in An Image is Worth 16x16 Words (arXiv:2010.11929).
It applies a standard transformer encoder directly to images with very few changes:
- Split into patches. The image is divided into fixed-size patches, say 16×16 pixels. A 224×224 image becomes a grid of 196 patches.
- Linearly embed each patch. Each flattened patch is projected to the model's hidden dimension. This is the patch embedding, much like a word embedding.
- Add a [class] token and position embeddings. A learnable
[class]token is added at the start, and its final state becomes the image representation. Position embeddings keep the spatial order. - Run the transformer encoder. Multi-head self-attention lets every patch attend to every other patch. So we get global context from the very first layer.
- Classify with an MLP head. The
[class]token's output feeds a classification head.
| Model | Layers | Hidden size | Heads | Params |
|---|---|---|---|---|
| ViT-Base | 12 | 768 | 12 | 86M |
| ViT-Large | 24 | 1024 | 16 | 307M |
| ViT-Huge | 32 | 1280 | 16 | 632M |
Note
ViT has less built-in inductive bias than a CNN. It has no locality or translation-equivariance baked in. So it shines when it is pre-trained on large datasets and then fine-tuned. That is exactly what we do here, starting from a model pre-trained on ImageNet-21k.

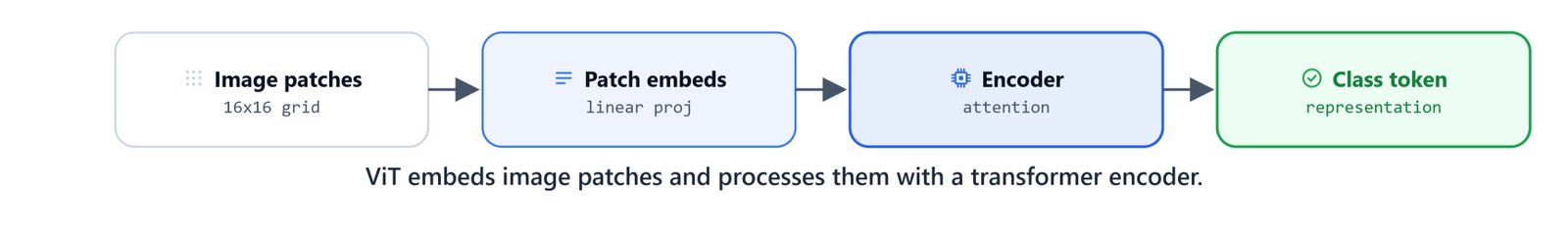

ViT splits an image into patches, embeds them, and feeds the sequence to a transformer encoder with a class token.
Loading the Image Dataset
We load the Indian food image dataset directly from the Hub:
from datasets import load_dataset
food = load_dataset("rajistics/indian_food_images")
food['train'][0]['image']<PIL.JpegImagePlugin.JpegImageFile image mode=RGB size=480x360>We build the label-to-ID mappings from the dataset's class names:
labels = food['train'].features['label'].names
label2id, id2label = dict(), dict()
for i, label in enumerate(labels):
label2id[label] = i
id2label[i] = label
print(label2id){'burger': 0, 'butter_naan': 1, 'chai': 2, 'chapati': 3, 'chole_bhature': 4, 'dal_makhani': 5, 'dhokla': 6, 'fried_rice': 7, 'idli': 8, 'jalebi': 9, 'kaathi_rolls': 10, 'kadai_paneer': 11, 'kulfi': 12, 'masala_dosa': 13, 'momos': 14, 'paani_puri': 15, 'pakode': 16, 'pav_bhaji': 17, 'pizza': 18, 'samosa': 19}There are 20 food classes to classify.
Preprocessing Images
We load the matching AutoImageProcessor. It knows the model's expected input size and normalization statistics:
from transformers import AutoImageProcessor
model_ckpt = "google/vit-base-patch16-224-in21k"
image_processor = AutoImageProcessor.from_pretrained(model_ckpt, use_fast=True)We define a torchvision transform pipeline. It does a random-resized crop, tensor conversion, and normalization. We apply it lazily with with_transform:
from torchvision.transforms import RandomResizedCrop, Compose, Normalize, ToTensor
normalize = Normalize(mean=image_processor.image_mean, std=image_processor.image_std)
size = (
image_processor.size['shorted_edge']
if "shorted_edge" in image_processor.size
else (image_processor.size['height'], image_processor.size['width'])
)
_transforms = Compose([RandomResizedCrop(size), ToTensor(), normalize])
def transforms(examples):
examples['pixel_values'] = [_transforms(img.convert('RGB')) for img in examples['image']]
del examples['image']
return examples
food = food.with_transform(transforms)Tip
RandomResizedCrop is a form of data augmentation. It randomly crops and resizes each image during training, which helps the model generalize. with_transform applies the transform on the fly, so we do not copy the whole dataset in memory.
We define the accuracy metric:
import evaluate
import numpy as np
accuracy = evaluate.load('accuracy')
def compute_metrics(eval_pred):
predictions, labels = eval_pred
predictions = np.argmax(predictions, axis=1)
return accuracy.compute(predictions=predictions, references=labels)Fine-Tuning ViT
We load the model with an image-classification head sized to 20 classes:
from transformers import AutoModelForImageClassification, TrainingArguments, Trainer
import torch
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model = AutoModelForImageClassification.from_pretrained(
model_ckpt,
num_labels=len(labels),
id2label=id2label,
label2id=label2id
).to(device)Now we configure training. load_best_model_at_end keeps the best checkpoint by accuracy. gradient_accumulation_steps simulates a larger batch:
args = TrainingArguments(
output_dir="train_dir",
remove_unused_columns=False,
eval_strategy="epoch",
save_strategy="epoch",
learning_rate=5e-5,
per_device_train_batch_size=16,
per_device_eval_batch_size=16,
gradient_accumulation_steps=4,
num_train_epochs=4,
load_best_model_at_end=True,
metric_for_best_model='accuracy'
)
trainer = Trainer(
model=model,
args=args,
train_dataset=food['train'],
eval_dataset=food['test'],
tokenizer=image_processor,
compute_metrics=compute_metrics
)
trainer.train(){'eval_loss': 1.6276, 'eval_accuracy': 0.8225, 'epoch': 1.0}
{'eval_loss': 1.1054, 'eval_accuracy': 0.8810, 'epoch': 1.99}
{'eval_loss': 0.9265, 'eval_accuracy': 0.8905, 'epoch': 2.99}
{'eval_loss': 0.8886, 'eval_accuracy': 0.8895, 'epoch': 3.99}
{'train_runtime': 928.8633, 'train_loss': 1.3234, 'epoch': 3.99}Important
remove_unused_columns=False is required for image models. Without it, the Trainer would strip the pixel_values column that the transform creates, and training would fail.
Here, we can see accuracy climb from 82% to nearly 89% over four epochs. Now we save the model:
trainer.save_model('food_classification')

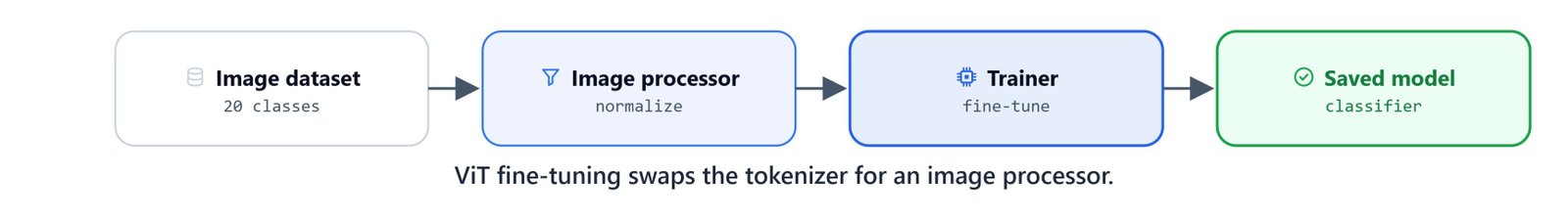

The ViT fine-tuning workflow mirrors text fine-tuning, swapping the tokenizer for an image processor.
Inference
We load the fine-tuned model as an image-classification pipeline. Then we predict on a new image from the web:
from transformers import pipeline
import requests
from PIL import Image
from io import BytesIO
pipe = pipeline("image-classification", model='food_classification', device=device)
url = 'https://www.indianhealthyrecipes.com/wp-content/uploads/2015/10/pizza-recipe-1.jpg'
response = requests.get(url)
image = Image.open(BytesIO(response.content))
pipe(image)[{'label': 'pizza', 'score': 0.5428637862205505}, {'label': 'kadai_paneer', 'score': 0.03565927594900131}, {'label': 'pav_bhaji', 'score': 0.03565794229507446}, {'label': 'butter_naan', 'score': 0.028422074392437935}, {'label': 'burger', 'score': 0.027608927339315414}]Here, we can see the model classify the image as pizza with high confidence.

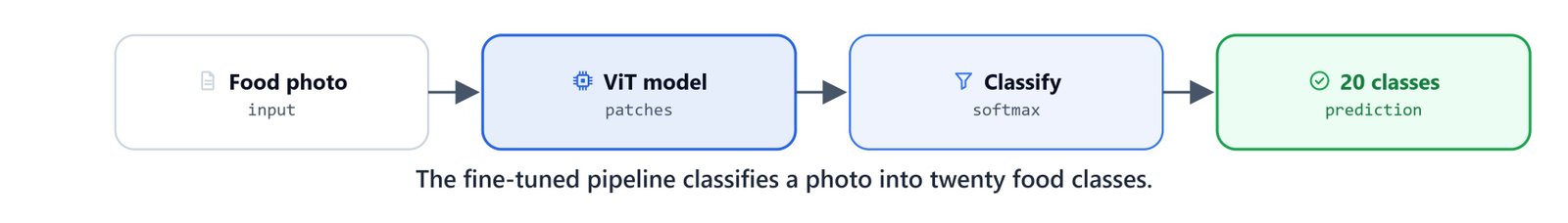

The fine-tuned pipeline classifies a new food photo into one of the twenty categories.
Summary
This is how ViT fine-tuning works. We fine-tuned a Vision Transformer to classify 20 food categories at nearly 89% accuracy. The big idea is simple. ViT treats image patches like word tokens. So the exact same Trainer workflow applies. The only change is swapping the tokenizer for an AutoImageProcessor and using remove_unused_columns=False.
So far every model has been encoder-based. Next, the series moves to true generative LLMs and parameter-efficient fine-tuning. We will do fine-tuning Phi-2 on custom data with LoRA and QLoRA.
